FS-10 NANO WATER FILTER (10,000 LPH)

SERUS RUSSIA WATER TREATMENT

Self Cleaning Inline Nano Water filter system with direct flushing to purify water from impurities includes:


1st stage cleaning.
Fine mechanical cleaning with string membrane filter element serus provides filtering of microparticles up to 1 micron.

Filter Cartridge is covered in 99.999% nano silver particles. Then An ultra-thin stainess steel string is wounded on to the filter cartridge, which is thinner than a human hair.

The filter is able to retain hardness salts, dissolved iron salts of organic heavy metals; coax sand of dusty fractions of manganese and other impurities; this significantly improves the organoleptic properties of water (turbidity, color, smell, taste).

2nd step cleaning.
Bactericidal cleaning - in the serus filters galvanic silver coating technology is used. Water saturated with silver ions inhibits pathogenic bacteria and pathogens of infectious diseases. The bactericidal properties of silver are several times stronger than those of bleach and carbolic acid. More than 400 types of dangerous microflora are inhibited and die under the influence of silver ions. Bactericidal treatment of drinking water using silver effectively destroys bacteria and protects the body from pathogenic microflora.

3rd stage cleaning.
Biomagnetic treatment using a magnetic converter built into the filter intended for softening water, preventing the appearance of yellowness and scale on household appliances. The magnetic converter ensures the safety of the boiler, washing machine, dishwasher, shower, kitchen, bathroom fixtures and cleanses the previously formed calcium, magnesium and iron deposits.

Serus FS-1 water filter Universal and can be used for Residential, Commercial and Industrial Applications such as:

-Filtration of water in systems of hot and cold water supply of industrial and private individual use.
-Filter for use in water supply systems for apartments, houses, cottages, swimming pools, offices.
-The filter element is made of stainless high-alloy steel in the form of a silver string on the cartridge frame.
-The filter cartridge is covered in 99.999% Nano Silver.
-Filter cartridge doesnt need to be changed. It does not take impurities inside of it and instead gets flushed down the drain valve.








Characteristics

Performance - 1 M³ /hr (10,000 LPH)
Filtration fineness - 1 micron
Maximum working pressure- 16 Bar
Minimum working pressure- 0,5 Bar
Connection size - 1.5 inch, DN40
Maximum temperature- 100°C

Dimensions (mm) 215x100x70
Approximate Weight 3.5 kg

Design

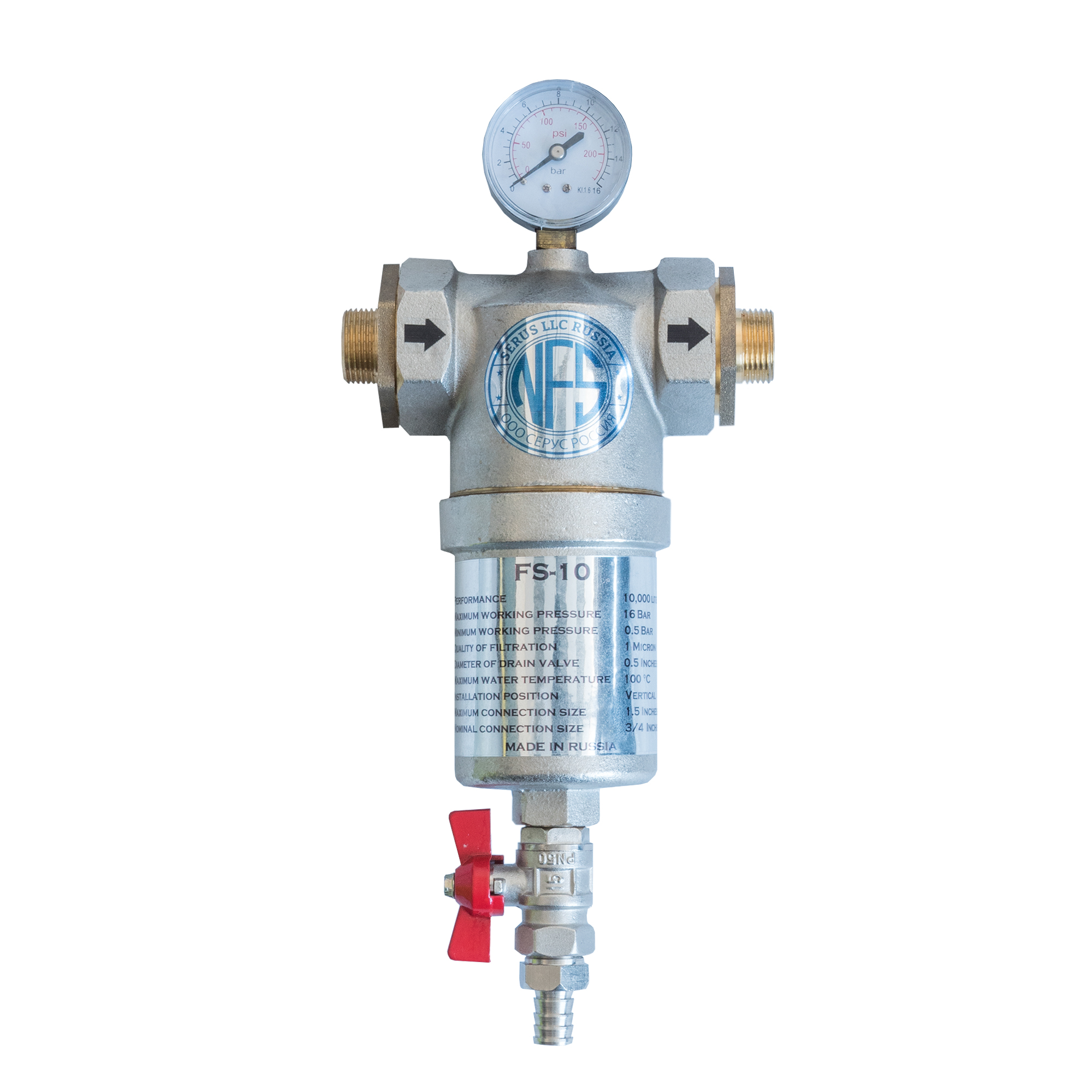

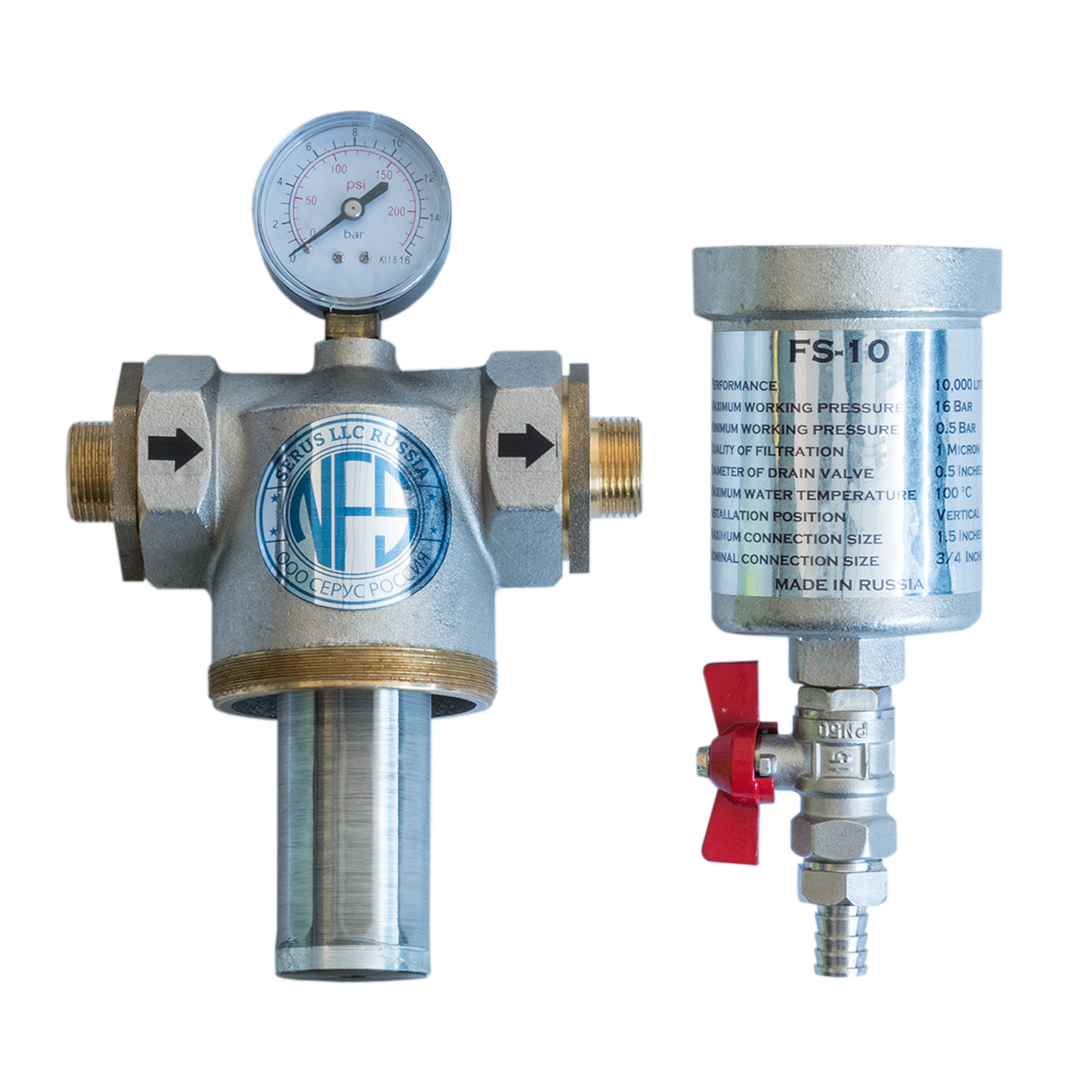

Serus nano filter FS-10 consists of a body with an internal thread, a string filter element, a water structurer, a drain valve, a bulb, a pressure gauge. The drain valve provides a direct flushing of the filter. The filter is easy to maintain and operate and has compact dimensions.

Operating principle

The Serus self cleaning inline nano water filter has two modes of operation: filtration and flushing.
In the filtration mode, water penetrates the filter element inside and leaves the filter cleaned.
All mechanical impurities remain outside the filter element at the bottom of the flask .The rinse mode is switched on / off by opening drainage valve at the bottom of the flask During washing, the water stream removes all accumulated debris from both the surface of the filter element and the bottom of the filter housing.The operation of the drain valve can be done manually or with a automatic flushing device.


Materials

1.The body and the filter flask are made of stamped brass with nickel plated coating
2.A water structurer inside the filter cartridge made of fine magnet, amber and rhinestone for structured water
3.A fine string filtering element made of high-alloyed stainless steel - NBR seals.
Installation:
Installation of the filter is possible on plastic and metal pipes. Installation of the filter is recommended after the shut-off valves behind the water meter. Maintenance of the filter is done without dismantling. The filter position is only in the vertical position with the drain valve pointing down. Installation in a confined space is possible.


Filter Advantages

-high cleaning efficiency
-simple, direct flushing
-compact size
- maintenance of filter done without dismantling from pipeing system.
-Filter and filter cartridge is guaranteed to operate properly for 10 years guaranteed, without buying any additional filter cartriges.

Application

Serus water filter FS-10 is used for domestic, commercial and Industrial applications for the continuous supply of filtered cold and hot water at normal pressure in the pipeline.
